Product
Power Export Kit (PEK)
The PEK is a drop-in battery power system for anywhere you need a lot of electric power — or power for a long time without a sound. Built from 15 kWh packs, and scaled to the hours you need.
- Capacity
- 15 kWh pack
- Stackable up to 32 packs
- AC continuous
- 12 kW
- DC at 28 V
- 14 kW
- Weight
- 350 lb
- With 15 kWh · 480 lb with 30 kWh

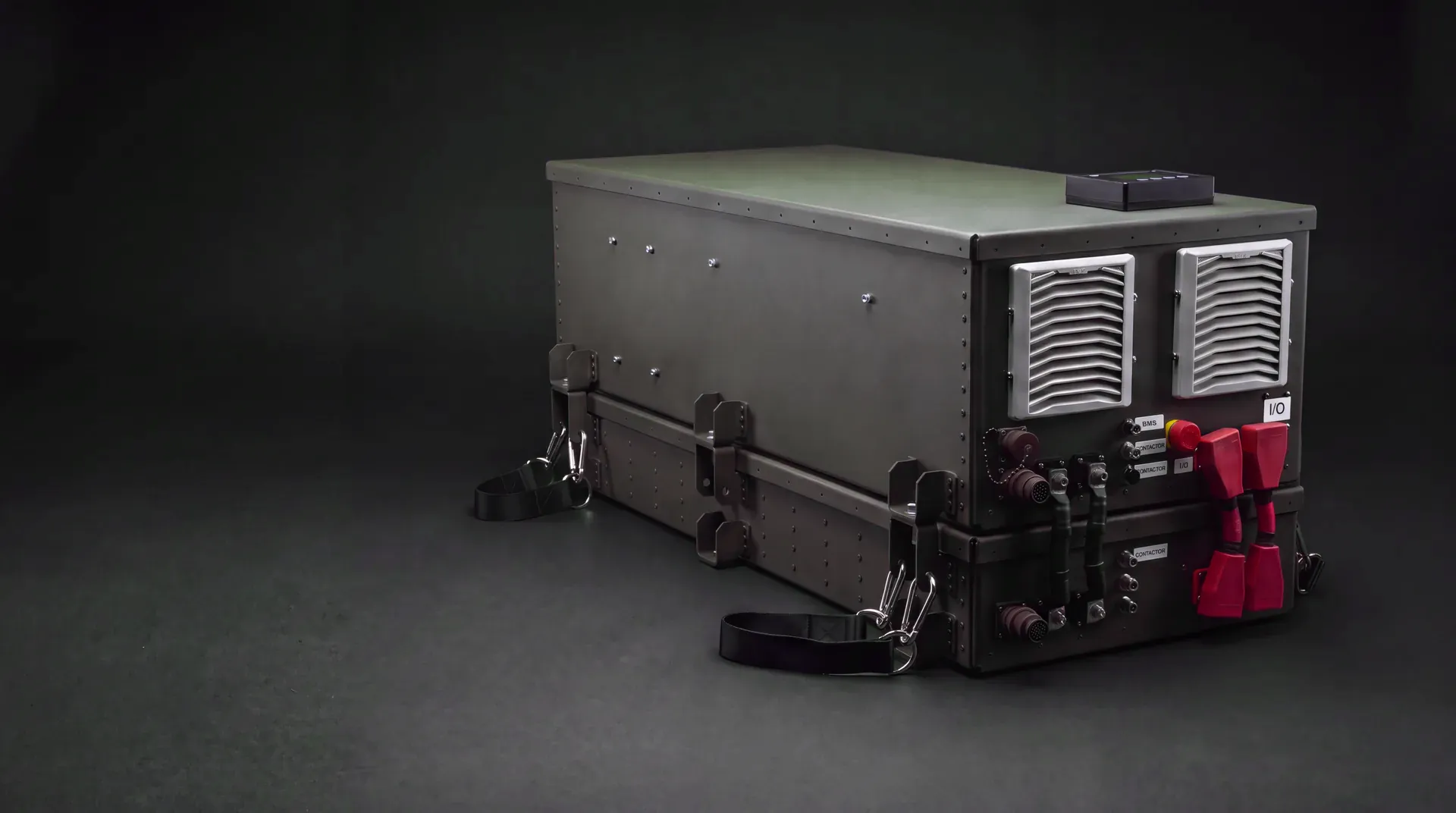

Standard PEK configuration
The problem
Power at the point of need, without the generator
Radios, sensors, night vision, counter-UAS and electronic warfare payloads all draw continuous power. Today that usually means idling an engine or hauling a generator — an acoustic and thermal signature that can be heard and seen, and a fuel line that has to be resupplied and defended.
The PEK replaces that with stored energy: a battery system that drops in wherever power is needed and runs silently for as long as the mission requires. The same holds on a job site, a film set or a disaster response — anywhere noise, fumes or fuel logistics are the problem.
How it works
Charge it from what you have. Run what you need.
Charging and output use separate interfaces, and every AC outlet is protected by the system circuit breakers.
Charge from
12–48 V DC
Vehicle or DC source
208 V AC three-phase
60 Hz shore or generator power
PEK battery pack
15 kWh
Export module

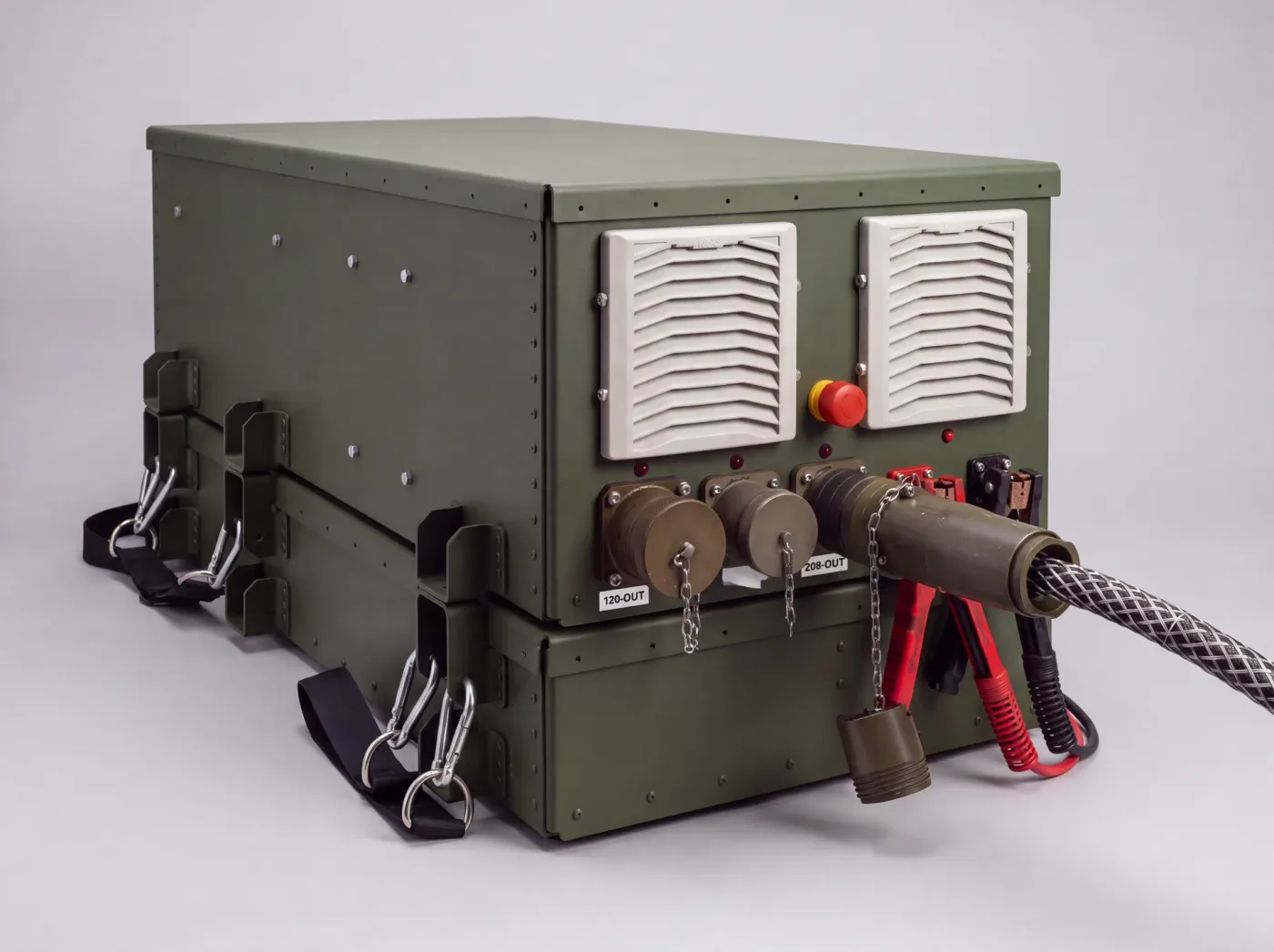

Power out
28 V DC · 14 kW continuous
500 A on a NATO slave receptacle (MIL-PRF-62122E)
120/208 V AC three-phase · 12 kW continuous
60 Hz wye, on a 40 A M40 receptacle. 18 kW for 10 s. Optional upgrade to 24 kW continuous, 36 kW for 10 s.
Single-phase AC
60 A M60 receptacle, on the same AC output
Runtime calculator
What will it run, and for how long?
Add the equipment you need to power. The estimate updates as you go — then send the load profile to us with your inquiry and we will size the kit.
Equipment
Typical average draw — edit the watts to match your equipment.
- Vehicle radio set
- Satellite terminal
- Laptop or mission computer
- Sensor or camera mast
- LED area lighting
- Counter-UAS or EW payload
- Drone battery charging
- Medical equipment
- Refrigeration
- Heating or cooling unit
- Power tools
An example silent-watch load is filled in. Adjust it to yours.
1.09 kW11 hours(1 × 15 kWh)
EstimateEstimate
- Continuous load
- 1.09 kW
- Capacity
- 15 kWh
Estimated runtime
11 hours
Estimate only. Assumes 90% usable capacity and 90% conversion efficiency at a constant load. Actual runtime depends on load profile, temperature and duty cycle.
Specifications
PEK specifications
Figures are for the standard PEK configuration. Output options and interfaces can be configured per order.
Standard configuration
Energy
- Battery
- 15 kWh pack (48 V, 14.976 kWh)
- Expansion
- Stackable in 15 kWh packs, up to 32 packs
DC output
- Voltage and current
- 28 V DC, 500 A
- Continuous power
- 14 kW
- Interface
- NATO slave receptacle (MIL-PRF-62122E)
AC output
- Voltage
- 120/208 V AC, 60 Hz, three-phase wye
- Continuous power
- 12 kW (18 kW for 10 s)
- High-output option
- 24 kW continuous (36 kW for 10 s)
- Receptacles
- 40 A three-phase (M40) and 60 A single-phase (M60)
- Protection
- AC outlets fully integrated with system circuit breaker protection
- Power quality
- MIL-STD-1332 (Type 1, Class 2C, Mode 1); ±3% voltage regulation, THD under 3%
Charging
- Inputs
- 12 V up to 48 V DC, or 208 V AC three-phase, 60 Hz
- Interfaces
- Separate from the outputs
Physical
- Envelope (W × D × H)
- 1.5 × 4 × 1.5 ft
- Weight
- 350 lb with 15 kWh, 480 lb with 30 kWh
- Ingress
- IP54 (air-cooled)
Request a quote
Get a PEK quote
Tell us what you need to run and for how long — or send the load profile from the calculator. We will size the packs and outputs and come back with a quote.
