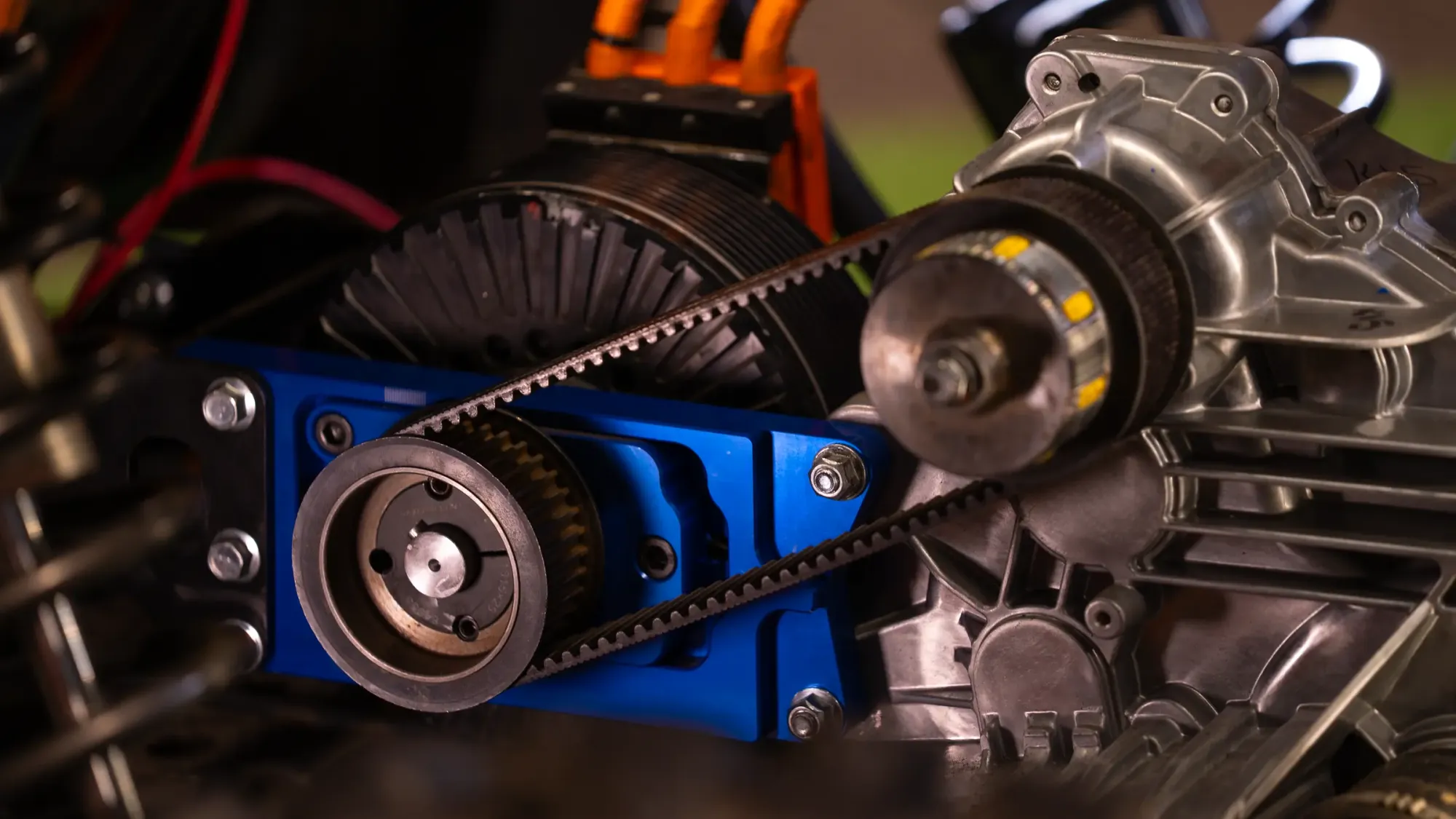

SPM electric drivetrain installed in a vehicle: motor, high-voltage cabling, belt drive and billet mounting plate

Engineering services

Custom Development

Battery packs, power export systems and complete vehicles, engineered to your requirement and built in Pittsburgh — from the first conversation through prototype and production.

Scope a programSee how we work
Scope
Cells to complete vehicles
Built in
Pittsburgh, PA
Stage
Prototype → LRIP

Every program is sized to its own requirement

Why custom

When the catalog part does not fit

Most programs do not fit an off-the-shelf battery or vehicle. The space claim is fixed, the mass budget is tight, the loads are specific and the terrain is hard — and sometimes no platform on the market fits the mission at all.

We design to the boundary you give us: a pack packaged into the space you already have, a power system matched to the equipment you have to run, or a clean-sheet vehicle built around the mission — rather than asking you to work around a catalog part.

What we develop

Two kinds of program, one team

Power systems and vehicles are designed by the same engineers, so a program can start with one and grow into the other.

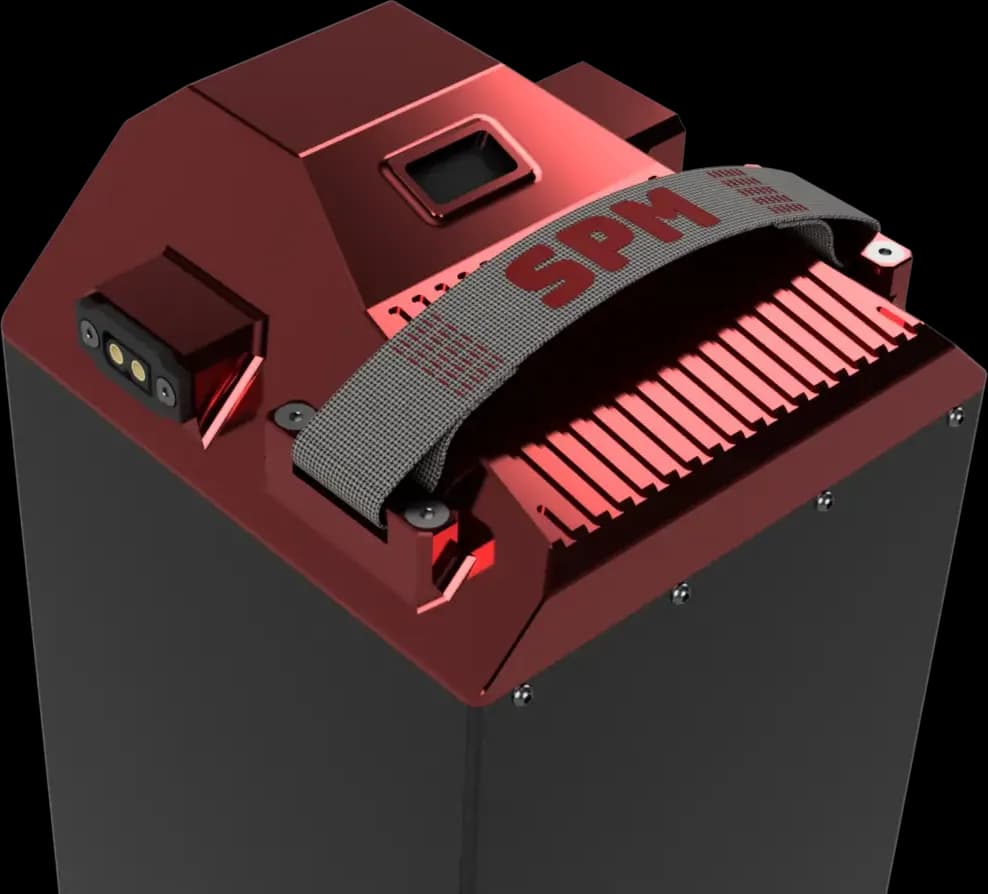

Top detail of the SPM battery pack: carry strap, cooling fins, status display and keyed power connector

01

Battery and power export systems

High-voltage packs and power export engineered to your loads, voltage, envelope and environment — mounted to a platform, dismountable, or standing alone.

  • Vehicle-mounted packs for silent onboard export
  • Dismountable and portable packs
  • Custom voltage, capacity and export configurations
  • Integration into fielded platforms without structural rework
  • Connectors, communications and controls matched to your systems
  • Sealing, cooling, shock and vibration to the environment
Scope a power program

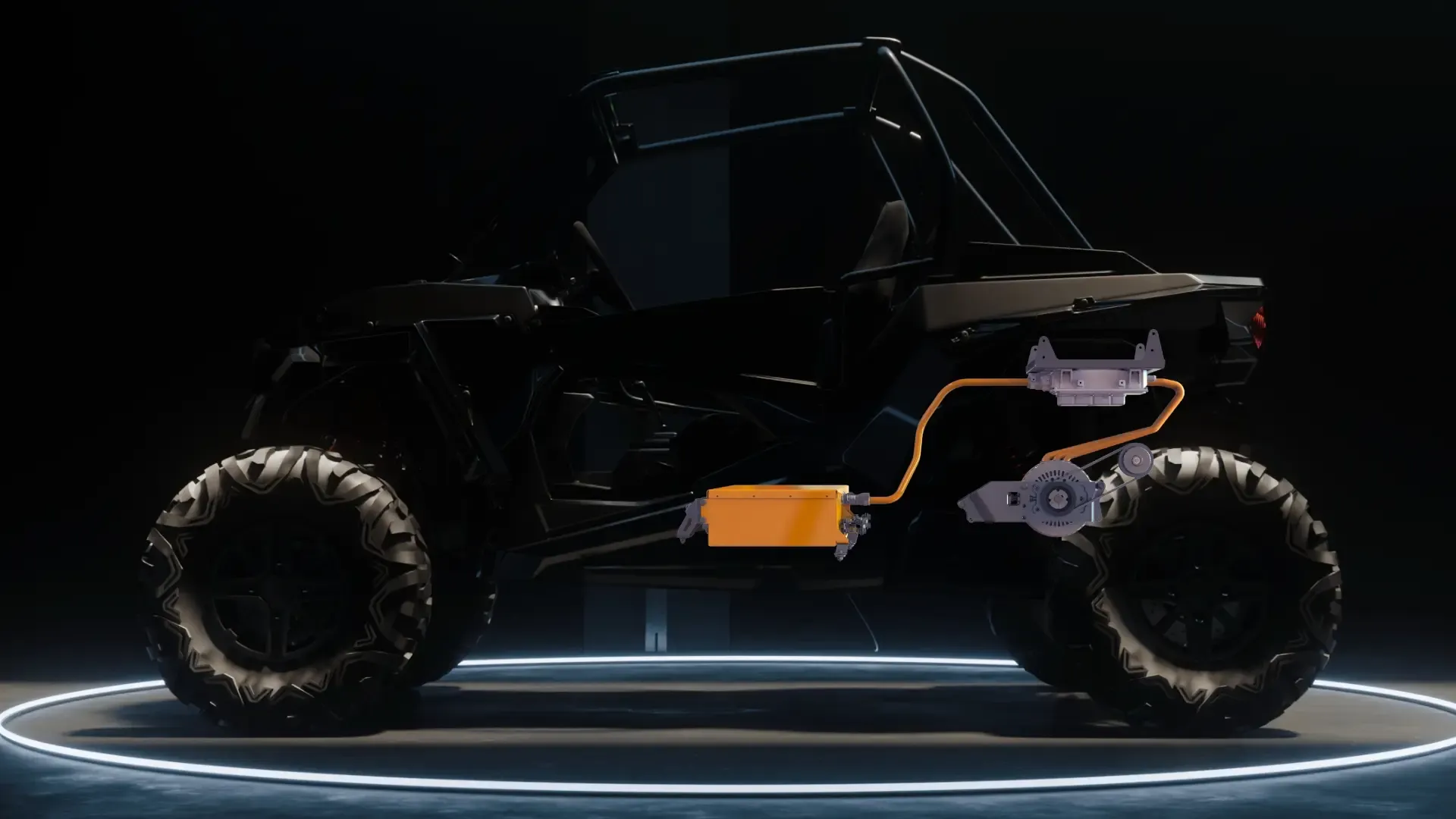

Side view of a UTV with the SPM electric powertrain highlighted: battery pack mounted low in the chassis, high-voltage cabling routed to the inverter and rear-mounted motor

02

Complete vehicles

A clean-sheet vehicle when the mission does not fit an existing platform — battery, drivetrain, chassis and body, designed as one system.

  • Battery and high-voltage architecture sized to the duty cycle
  • Electric drivetrain — the architecture proven in the Electric Vehicle Kit, resized
  • Chassis and suspension for the payload and the terrain
  • Body and structure around the crew and mission equipment
  • Vehicle electronics, wiring and controls
  • Prototype through low-rate initial production
Scope a vehicle program

How we work

From requirement to production

One team takes the program from the first conversation to repeatable production, so nothing is lost between design and build.

  1. 01

    Define

    Mission, loads, duty cycle, space claim, mass budget and environment. If the requirement is still forming, we help you write it.

  2. 02

    Design

    Cells, power electronics, drivetrain, chassis, body and controls — designed in-house, as one system.

  3. 03

    Prototype

    Built in our Pittsburgh shop and iterated on real hardware, not only in simulation.

  4. 04

    Validate

    Tested on the bench and on the vehicle, in the conditions it has to survive.

  5. 05

    Produce

    Prototype through low-rate initial production, built in Pittsburgh.

Example builds

Systems we have already built

These are here because they are real hardware, not because they are the only answer. Every program is redesigned around its own platform and requirement.

01

Vehicle-mounted export pack

Added to a fielded light tactical vehicle without changing its engine or drivetrain, for silent power export. Demonstrated on MRZR-class vehicles.

Example build

Pack
470 V / 10 kWh
Added mass
≈120 lb
Export
24 / 48 / 120 / 240 V
Engine
Retained
Ask about vehicle-mounted power

02

Power Export Kit

A modular, drop-in power system with military DC and AC interfaces, now sold as a product.

Example build

Pack
48 V / 15 kWh
AC
12 kW continuous
DC
14 kW at 28 V
Ingress
IP54
See the Power Export Kit

03

Electric Vehicle Kit drivetrain

The motor, inverter and modular high-voltage pack behind the Electric Vehicle Kit, sized per vehicle and paired with an optional range extender.

Example build

System
470 V
Peak power
165 hp
Capacity
10–20 kWh
Export
24 / 48 / 120 / 240 V
See the Electric Vehicle Kit

Track record

Already in front of the end user

Special operations demonstrations

SPM has demonstrated vehicle-integrated silent power export to special operations forces on MRZR-class light tactical vehicles.

Tactical vehicle industry engagement

Presented alongside the defense mobility community, including TEVCON, with running prototype hardware rather than renderings.

Backed for dual-use

Venture-backed specifically to accelerate dual-use military and civilian electric off-road powertrains.

Scope a program

Tell us what it has to do

Share the loads, the platform, the space and the environment — or just the mission, if the requirement is not written yet. An engineer will respond.

Direct

info@spm.us

Pittsburgh, PA — USA

For example: MRZR, Polaris RZR, a trailer or shelter, or still to be decided.

Power needed, duty cycle, space and mass constraints, quantities — whatever you can share.
